DP-32 Infrared Thermal Imager is a high-precision thermal imaging, which can measure the temp of target object online in real time, output thermal image video and check the over-temp condition. Going with different matching platform software, it can be suitable for different usage modes (such as power device temp measurement, fire alarm, human body temp measurement and screening). This document only introduces the usage modes for human body temp measurement and screening.
DP-32 employs USB supply power and transmit data are completed through one USB line, realizing convenient and rapid deployment.
Based on on-site deployment of clients, DP-32 can carry out temp compensation varying with environment changes voluntarily without continuous blackbody calibration and control the error within the range of ±0.3°C (±0.54°F).
Infrared thermal imaging
Response wave band
34.4 in horizontal, 25.8 in vertical
-10°C - 330°C (14°F-626°F)
For human body, the temp compensation algorithm can reach ±0.3°C (±0.54°F)
Human face recognition, general measurement.
Whitehot, Rainbow, Iron, Tyrian.
Power supply and data transmission through standard Micro USB 2.0
-20°C (-4°F) ~ +60°C (+140°F) (for the requirement of accurate temp measurement of human body, it is recommended to use at ambient temp of 10°C (50°F) ~ 30°C (+86°C))
-40°C (-40°F)- +85°C (+185°F)
Waterproof and dustproof
JPG, PNG, BMP.
¼” Standard tripod or pan-tilt hoisting is adopted, total 4 holes.
High temp tracking in measurement area can be set.
Available for alarm over the set high threshold temp, can sound alarm, snapshot alarm photos and store simultaneously.
The users can set up temperature compensation according to the environments
Manually under opening, automatically under alarming
Internet cloud upload
Customized according to cloud requirements
The specification of B01 blackbody is below,
+5℃～50℃ (41°F ~ 122°F)
Black target surface diameter
50 x 50mm
Temperature measurement accuracy
Fixed temperature calibration
190 x 120 x 160mm
Only one USB cable is needed to connect the thermal imaging machine and the computer. The connection mode and interface model are shown in the following figure
It is proposed to running the system under Microsoft Windows 10 x64, the interface is as follows:
Select the camera in red box in the figure below, click the "Play", and the current image of the camera will be displayed on the right. Click "Stop" to stop displaying the real-time image. Click "Photo" to select "Folder" and save the image.
Press the maximize icon in the upper-right of the image, the image and measured temperature value will be enlarged, and press again will change back the normal mode.
DP-32 infrared thermal imager provide 2 modes for the temperature measurement,
· Human face recognition
· General measurement mode
The customers could change the mode in the configuration in the upper-right corner icon of the software
Human face recognition

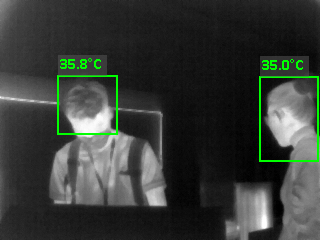

The software default measurement mode is human face recognition, when the software recognize the human face, there will be a green rectangle and show the temperature. Please don’t dress hat, glasses to cover the face.
You can click "Color" at the red circle in the figure below to display the thermal image.
The optional color palettes are as follows:
Available for image alarms and sound alarms, and automatic saving of snapshot when alarms occur.
When the temp exceeds the threshold, the area temp measuring box will turn red to give an alarm.
Click on the ellipsis following the word "Voice Alarm" to select different sounds and intervals for sound production, and click on the ellipsis following the word "Alarm Photo" to select the directory and interval for automatic snapshot.
The alarm support customized sound file, now only support PCM encoding WAV file.
If "Alarm Photo" is checked, the snapshot will be displayed on rightmost side of the software and the snapshot time will be displayed. Click this picture to view with Win10 default software.

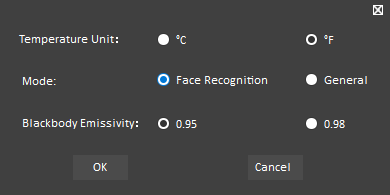

Press the upper right corner configuration icon, the users can configure the below,
· Temperature unit: Celsius or Fahrenheit.
· Measurement Mode: Face recognition or General mode
· Blackbody emissivity: 0.95 or 0.98
